KAIST Glove Box 1.0 and Solvent Trap Repair (Secondary Battery Application)

dawoovac

Updated: Feb 20

KAIST Glove Box & Solvent Trap Repair: Dawoovac's Solution for 2nd Battery Research

KAIST 2차 전지 연구용 글러브 박스 및 솔벤트 트랩 수리: 다우백의 솔루션

  • Dawoovac Optimizes KAIST Glove Box Performance with Ring Blower Upgrade

다우백, 링 블로워 업그레이드로 KAIST 글러브 박스 성능 최적화

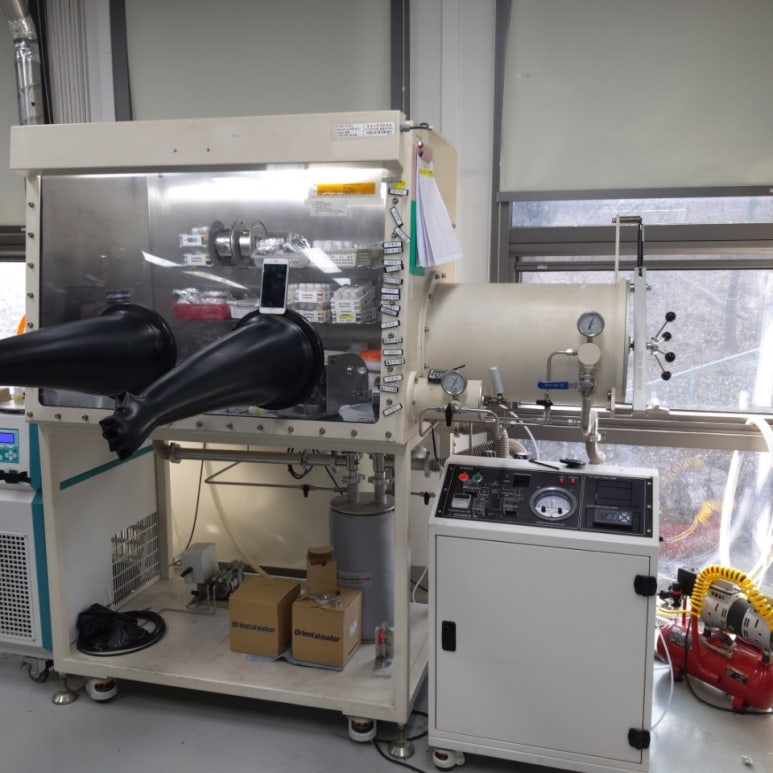

KAIST에 설치된 2차 전지 연구용 Glove Box 1.0 정면 사진
KAIST에 설치된 2차 전지 연구용 Glove Box 1.0 정면 사진

Dawoovac recently completed a challenging repair project at KAIST, involving a Glove Box and Solvent Trap system used for secondary battery research. This case study highlights how Dawoovac's expertise resolved critical issues, enhancing the system's performance and lifespan.

다우백은 최근 KAIST에서 2차 전지 연구에 사용되는 글러브 박스 및 솔벤트 트랩 시스템에 대한 수리 프로젝트를 완료했습니다. 이 사례 연구는 다우백의 전문 지식이 어떻게 중요한 문제를 해결하고 시스템의 성능과 수명을 향상시켰는지 강조합니다.


KAIST researchers faced multiple issues with their glove box system: persistent odors, rising PPM levels (indicating potential leaks or purification issues), and a malfunctioning, overheating circulation blower, jeopardizing research integrity.

KAIST 연구원들은 글러브 박스 시스템에서 지속적인 냄새, PPM 수치 상승, 순환 블로워 오작동 및 과열 등 여러 문제에 직면하여 연구 무결성에 우려가 있었습니다.


Dawoovac's expert technicians identified the root causes and implemented a comprehensive solution:

다우백은 근본 원인을 파악하고 포괄적인 솔루션을 구현했습니다.

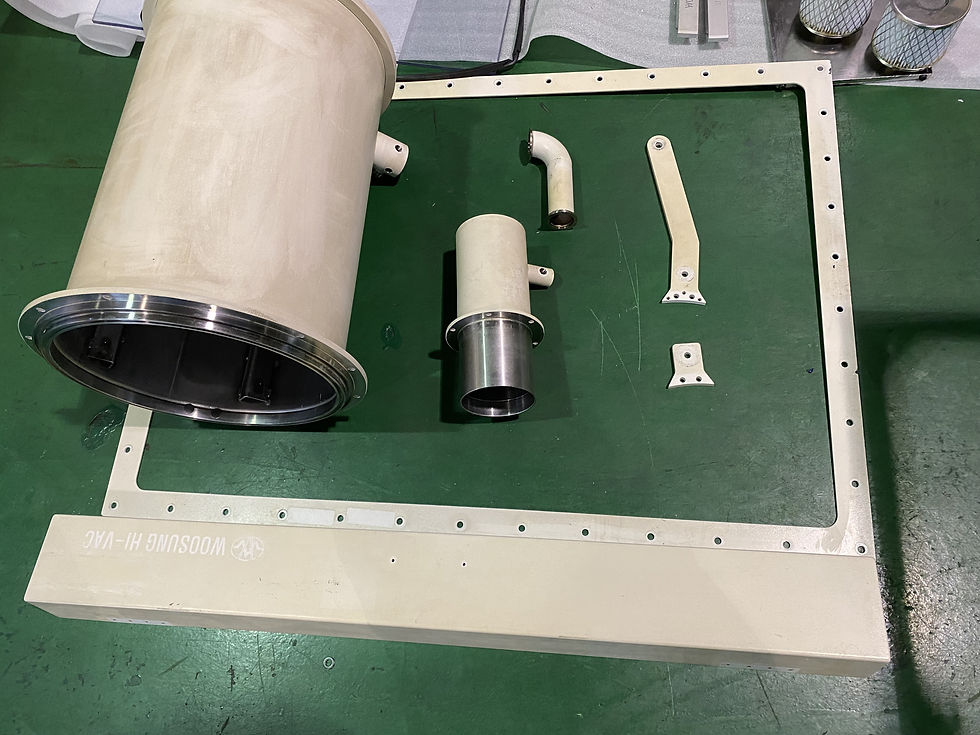

수리를 위해 분해된 Glove Box 1.0 내부 부품: 필터, 촉매 등
수리를 위해 분해된 Glove Box 1.0 내부 부품: 필터, 촉매 등
Glove Box 1.0 헤드 사진
Glove Box 1.0 헤드 사진

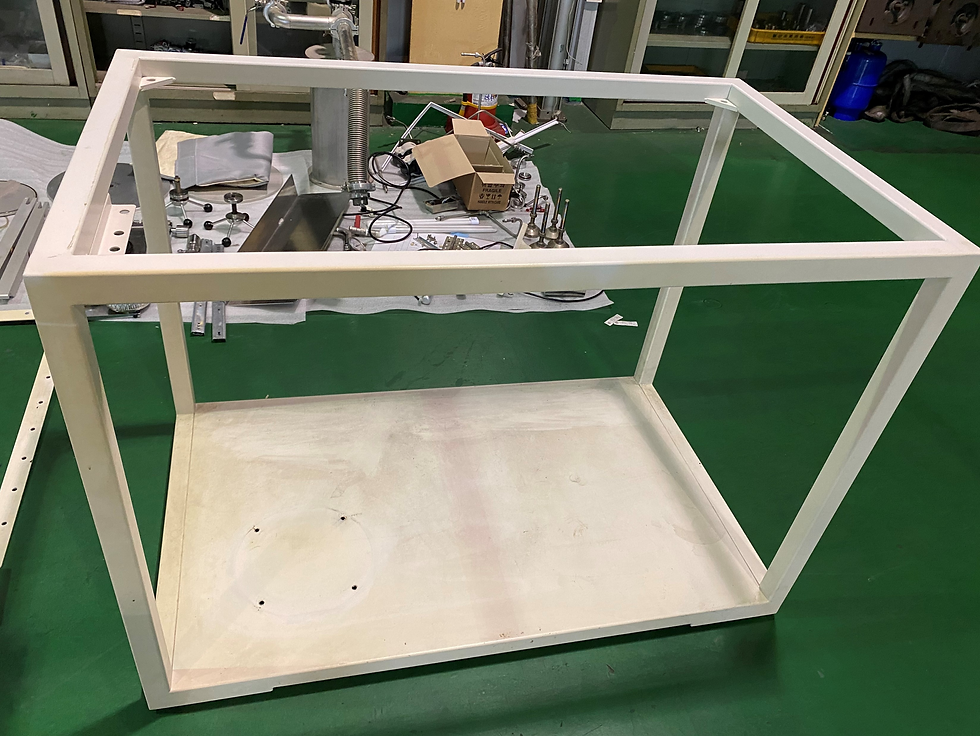

Glove Box 1.0 프레임 사
Glove Box 1.0 프레임 사
  • Odor Elimination: Complete disassembly, 2-3 cycle heat treatment of components, and repainting ensured a contaminant-free environment.

    냄새 제거: 완전 분해, 구성 요소에 대한 2~3회 열처리 및 재도장을 통해 오염 물질이 없는 환경을 보장했습니다.

Glove Box 1.0에 설치되어 있던 기존 시로코팬 (100mm H2O) 정면
Glove Box 1.0에 설치되어 있던 기존 시로코팬 (100mm H2O) 정면
Glove Box 1.0 기존 시로코팬 (100mm H2O) 도면
Glove Box 1.0 기존 시로코팬 (100mm H2O) 도면
  • Circulation Blower Analysis & Back Pressure Solution: The existing Sirocco fan (rated for 100mm H2O) was identified as a key problem. Sirocco fans are susceptible to performance degradation in closed-loop systems like glove boxes due to back pressure – the resistance to airflow caused by components like filters and catalysts.  This back pressure was causing the fan to overheat and fail to adequately circulate and filter the atmosphere.

    순환 블로워 분석 및 배압 솔루션: 기존 시로코 팬(100mm H2O 등급)이 주요 문제로 확인되었습니다. 시로코 팬은 필터 및 촉매와 같은 구성 요소로 인한 공기 흐름 저항인 배압으로 인해 글러브 박스와 같은 폐쇄 루프 시스템에서 성능 저하에 취약합니다. 이 배압으로 인해 팬이 과열되고 대기를 적절하게 순환 및 여과하지 못했습니다.

Glove Box 1.0 기존 시로코팬 (100mm H2O) 측면
Glove Box 1.0 기존 시로코팬 (100mm H2O) 측면
새로 설치된 링 블로워 (1500-5000mm H2O) 측면
새로 설치된 링 블로워 (1500-5000mm H2O) 측면
  • Ring Blower Upgrade:  Dawoovac replaced the Sirocco fan with a high-performance Ring Blower, specifically designed to handle back pressure effectively (rated for 1500-5000mm H2O).  Ring Blowers offer significantly longer lifespans (4-5 times) than Sirocco fans in such applications.

    링 블로워 업그레이드: 다우백은 시로코 팬을 배압을 효과적으로 처리하도록 특별히 설계된 고성능 링 블로워(1500-5000mm H2O 등급)로 교체했습니다. 링 블로워는 이러한 응용 분야에서 시로코 팬보다 수명이 훨씬 더 깁니다(4-5배).

Glove Box 1.0용으로 Dawoovac이 설계한 열교환기 도면
Glove Box 1.0용으로 Dawoovac이 설계한 열교환기 도면

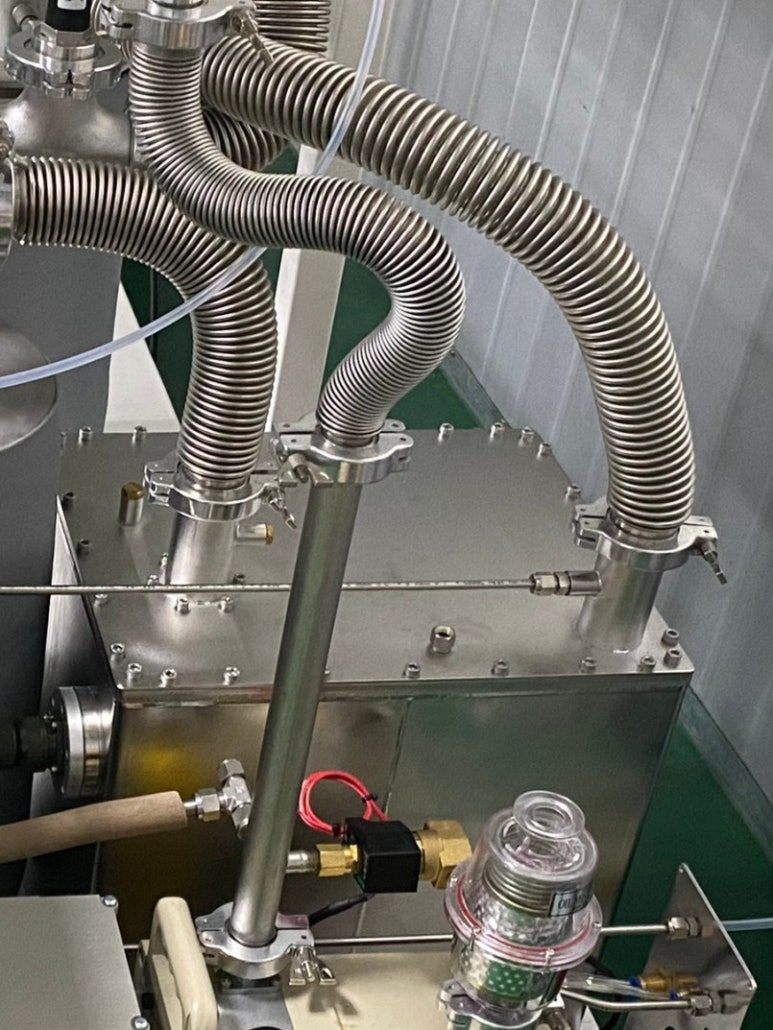

Glove Box 1.0에 설치된 Dawoovac의 맞춤형 열교환기
Glove Box 1.0에 설치된 Dawoovac의 맞춤형 열교환기
  • Heat Exchanger Integration: A custom-designed heat exchanger was added for optimal temperature control.

    열교환기 통합: 최적의 온도 제어를 위해 맞춤 설계된 열교환기가 추가되었습니다.

Dawoovac's solution provides:

  • Long-Term Cost Savings: Reduced maintenance and replacement from extended Ring Blower lifespan.

  • Precise Temperature Control: Stable and predictable environment for sensitive experiments.

  • Enhanced Component Longevity: Minimized wear and tear due to optimized operating conditions.

  • Odor-Free Environment:  Safe and productive workspace.

다우백의 솔루션은 다음과 같은 이점을 제공합니다.

  • 장기적인 비용 절감: 링 블로워 수명 연장으로 유지 보수 및 교체 비용 절감.

  • 정밀한 온도 제어: 민감한 실험을 위한 안정적이고 예측 가능한 환경.

  • 향상된 구성 요소 수명: 최적화된 작동 조건으로 마모 최소화.

  • 냄새 없는 환경: 안전하고 생산적인 작업 공간.

The upgraded system, incorporating the Ring Blower and heat exchanger, resolved all prior issues. The glove box now operates flawlessly, maintaining a stable, odor-free, and temperature-controlled environment.

링 블로워와 열교환기를 통합한 업그레이드된 시스템은 이전의 모든 문제를 해결했습니다. 이제 글러브 박스는 흠잡을 데 없이 작동하여 안정적이고 냄새가 없으며 온도가 제어된 환경을 유지합니다.


Facing similar challenges with your research equipment? Contact Dawoovac today to discuss a customized solution.

연구 장비와 관련하여 유사한 문제에 직면하고 계십니까? 지금 다우백에 문의하여 맞춤형 솔루션에 대해 논의하세요.
